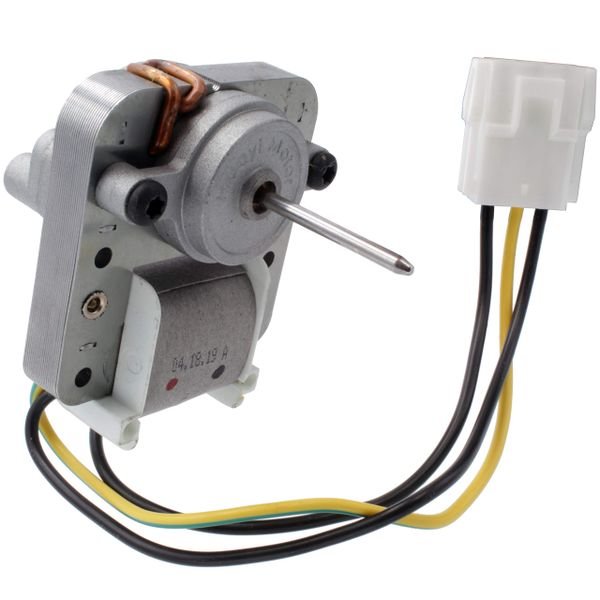

FRIGIDAIRE/ELECTROLUX REFRIGERATOR FAN MOTOR EVAPORATOR 115V – 297309000

This is a genuine OEM part that works for some models of Frigidaire, Electrolux, Gibson, Kelvinator, Westinghouse, Crosley, Kenmore, and Tappan models. DIY Replacement Instructions for 297250000 Frigidaire Evaporator Fan Motor

1. Turn off and unplug the refrigerator to avoid electric shock.

2. Remove the back panel of the refrigerator, located behind the freezer:

a. locate two screws that secure the back panel in place
b. unscrew the screws and set them aside
c. carefully lift the panel up and away from the refrigerator

3. Locate the old fan motor which sits in the center of the evaporator:

a. disconnect the electrical harness from the motor
b. remove the mounting screws located on either side of the motor
c. gently pull out the motor and remove it completely

4. Install the new fan motor 297250000 by reversing step three:

a. place the new fan motor into the evaporator
b. replace the mounting screws
c. reconnect the electrical harness

5. Replace the back panel and the two screws to secure it back in place.

6. Plug the refrigerator back in and turn it back on.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search BKFH17F1SW0 CALR17LW0 CALR17LW1 CALR17LW2 CCV17RFLW0 CCV17RFLW1 CFUF14LW0 CFUF14LW1 CFUF14LW3 CFUF14LW4 CFUF14PW1 CFUF14QWA CFUF14QWB CFUF14QWD CFUF17PT1 CFUF21CDMB0 CFUFH17LW0 CFUFH17LW1 CFUFH17LW4 CFUFH17PW1 CFUFH17QWA CFUFH20LW0 CFUFH20LW2 CFUFH211PW1 CFUFH21QWA CFUFHC21PW1 CFUFHC21PW2 CFUFHC21QWA E32AF75FPS4 E32AF75FPS5 E32AF75FPS6 E32AF75JPS0 E32AF75JPS1 E32AF75JPS2 E32AR75FPS3 E32AR75FPS4 E32AR75FPS5 E32AR75JPS0 E32AR75JPS1 E32AR75JPS2 1 2 3 4 5
