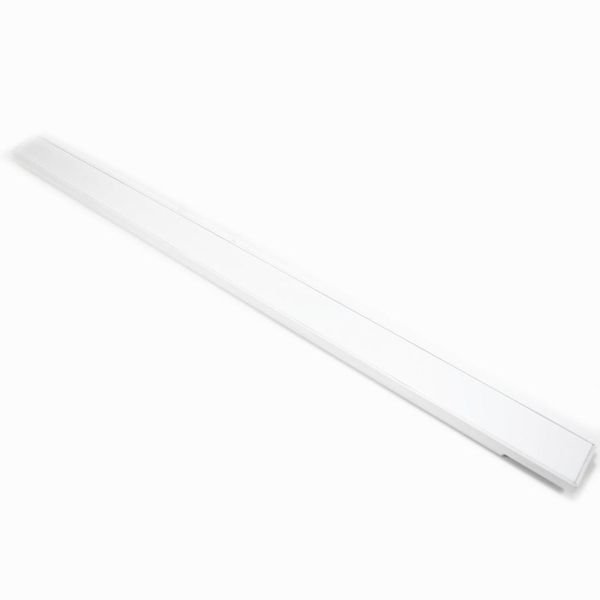

FRIGIDAIRE MULLION HEATER ASSEMBLY – 242036306

The Frigidaire 242036306 FLIPPER MULLION ASSEMBLY is a perfect replacement to repair your Frigidaire refrigerator. This part helps the refrigerator door close properly, preventing cold air from escaping, and allowing the temperature to stay constant. It’s built with durable plastic material and includes easy-to-follow instructions for easy installation. The perfect solution for keeping your fridge working like it should! We’re your #1 source for genuine OEM appliance parts. Contact us for further questions as well as any other appliance parts needs! DIY Guide to Replacing a Frigidaire 242036306 Flipper Mullion Assembly

Replacing the Filler Mullion Assembly on your Frigidaire 242036306 refrigerator can be a daunting task. This guide will provide step-by-step instructions to help you complete this repair safely and efficiently.

Tools Needed:

• Phillips head screwdriver

• Flat head screwdriver

• Socket set

• Ratchet

• Needle-nose pliers

• Torx screwdriver set

• Work gloves

Instructions:

1. Unplug the power cord from the wall outlet.

2. Remove freezer door and then open the refrigerator door.

3. Use a Phillips head screwdriver to remove the top hinge cover from the interior of the refrigerator.

4. Locate the bottom hinge screws and use a socket set and ratchet to remove them.

5. With the bottom hinge screws removed, carefully lift and remove the bottom hinge hardware.

6. Working on the exterior of the refrigerator, use a flat head screwdriver to remove the top hinge screws and remove the top hinge hardware.

7. Use a Torx screwdriver set to remove the lower Screws holding the flipper mullion assembly in place.

8. With the screws removed, carefully pull out the flipper mullion assembly.

9. Installation of the new Flipper Mullion Assembly is the reverse of removal.

10. Using a needle-nose pliers, reattach the flipper mullion assembly to the door and fridge.

11. Replace the hinge covers and use the Phillips head screwdriver to secure it.

12. Replace the top hinge screws and use a socket set and ratchet to secure it.

13. Replace the freezer door and plug the power cord back into the wall outlet.

Congratulations on successfully replacing your Frigidaire 242036306 Flipper Mullion Assembly!

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search LFHB2751TF7 EI23BC82SS4 EI23BC82SS3 EI23BC32SS4 LGHD2369TF5 LGHD2369TF4 LFHG2251TF6 LFHG2251TF4 LFHG2251TF3 LFHB2751TF8 FFHB2750TS6 FPBS2778UF4 FPBS2778UF3 FPBS2778UF1 FPBG2278UF2 FPBG2278UF1 FPBG2277RF9 FPBC2278UF4 FPBC2278UF3 E23BC79SPS6 FPBG2278UF6 FPBG2278UF5 FPBC2278UF5 LFHG2251TF5 FGHG2368TF5 RVRF3361SS5 RVRF3361SS4 RVRF3361SS3 LFHD2251TF7 FPBC2278UF1 E23BC79SPS5 E23BC79SPS4 E23BC69SPS3 LFHD2251TF6 LFHD2251TF5 FPBS2777RFK FFHN2750TS6 FFHN2750TS5 FFHB2750TS7 FGHN2868TF2 1 2
