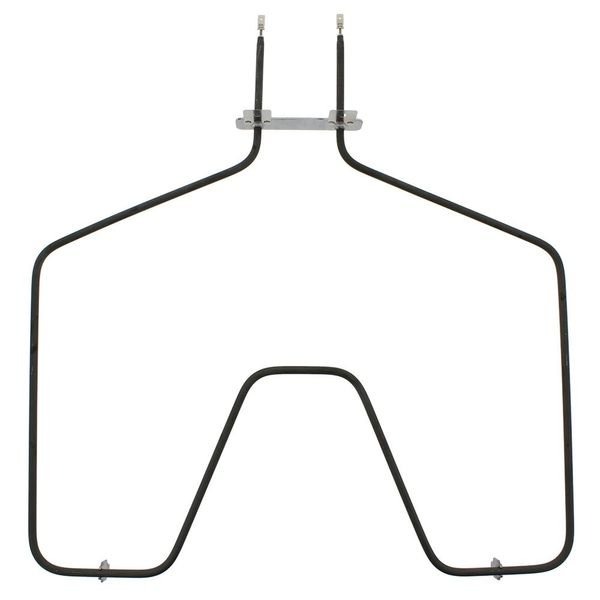

GE BAKE ELEMENT – WB44K5012

General Electric – Hotpoint Range Oven Bake Element WB44K5012We are a Factory Authorized Parts Distributor for General Electric. Trust us for all of your General Electric appliance parts and accessories needs. 1. Start by unplugging your oven from the wall outlet.
2. Remove the screws on the back of your oven that secure the access panel.
3. Carefully pull back the access panel.
4. Locate the bake element. A round heating element will be located at the oven’s bottom.
5. Unscrew the two screws securing the element to the back of your oven.
6. Disconnect the two wires that are attached to the element.
7. Remove the bake element from your oven.
8. Slide the new bake element into place and use the two screws to secure it to the oven.
9. Reconnect the two wires to the element.
10. Secure the access panel back onto the back of the oven and replace the screws.
11. Plug the oven back into the wall socket, and you are ready to start baking!

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search JB570GM5BK JB571GM6WH JB575GR2BK JB575GS1BK JB575GS2BK JB575GS3BK JB575GS4BK JB576GR2WH JB576GR3WH JB576GR4WH JB576GR5WH JB578GS1BG JB578GS2BG JB578GS3BG JB579GR2WH JB579GR3WH JB579GR4WH JB579GR5WH JBP15GIT1WH JBP15GIV1WH JBP18LY1WH JBP23BY1AD JBP23BY1WH JBP29GM4AD JBP29GM4WH JBP58LY1WH JBP58LY2WH JBP62BY1AD JBP62BY1WH JBP62BY2AD JBP62BY2WH JBS02LY1WH JBS02LY2WH JBS04V1AD JBS04V1WH JBS04V2AD JBS04V2WH JBS05Y1AD JBS05Y1WH JBS05Y2AD 1 2 3 4 5
