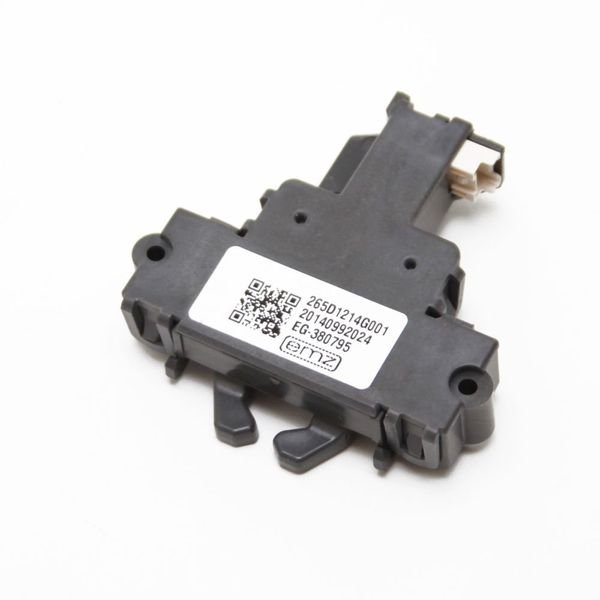

GE DISHWASHER DOOR LATCH TUB SIDE STANDARD – WD21X10490

Door latch tub side standard works with some GE, and Hotpoint models of dishwashers. Replacing the GE Dishwasher Door Latch Tub Side Standard (WD21X10490)

Tools you will need:

• Phillips head screwdriver

• Flathead screwdriver

Instructions:

1. Disconnect power to the dishwasher by unplugging it or turning off the breaker.

2. Using a Phillips head screwdriver, remove the screws that secure the access panel to the inside of the dishwasher; this panel is located at the bottom.

3. Once the access panel is removed, locate the door latch assembly and disconnect the two wires from the solenoid.

4. Use a flathead screwdriver to gently pry off the mounting clip that secures the old door latch assembly in place.

5. Replace the old door latch with the new WD21X10490 tub side standard door latch.

6. Secure the new latch in place with the mounting clip included with the new latch.

7. Reconnect the two wires that were disconnected from the solenoid earlier.

8. Replace the access panel and secure it using the screws that were removed earlier.

9. Restore power to the dishwasher.

10. Test out the new door latch.

You have now successfully replaced the GE Dishwasher Door Latch Tub Side Standard (WD21X10490).

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search GDF570SGD0BB GDF610PGJ5BB GDF610PGJ5WW GDF610PGJ4BB GDF610PGJ4WW GDF610PGJ2BB GDF610PGJ0WW GDF610PGJ0BB GDF610PGJ2WW GDT545PGJ6WW GDT635HGJ6BB GDF620HGJ6BB GDF610PSJ6SS GDF610PMJ6ES GDT635HSJ6SS GDT535PGJ6BB GDT635HGJ6WW GDF610PGJ6WW GDF510PGJ6WW GDT635HMJ6ES GDT535PSJ6SS GDF520PSJ6SS GDF520PMJ6ES GDF620HGJ6WW GDT625PGJ6WW GDT535PGJ6WW GDT625PGJ6BB GDF610PGJ6BB GDF510PMJ6SA GDF510PGJ6BB GDF520PGJ6CC GDF620HSJ6SS GDF520PGJ6WW GDT625PSJ6SS GDF520PGJ6BB GDF620HMJ6ES GDT545PFJ6DS GDT535PSM0SS GDT535PGM0WW GDF511PGM0WW 1 2 3 4 5
