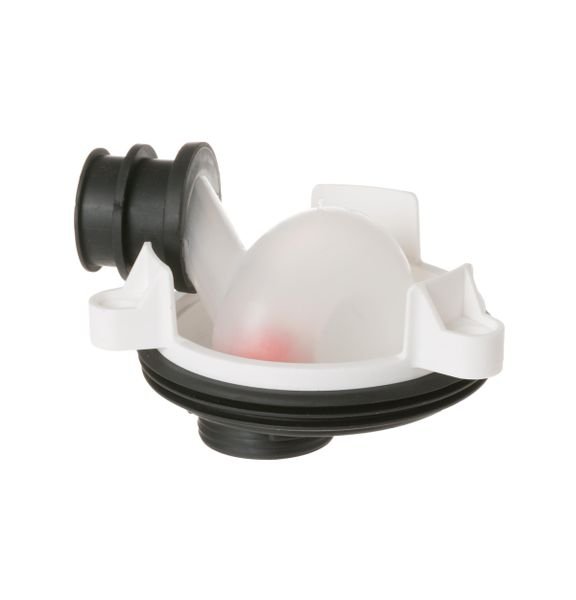

GE DISHWASHER PASSIVE DIVERTER ASSEMBLY KIT – WD18X21754

Passive diverter assembly kit works with some GE, Hotpoint, and RCA models of dishwashers. DIY Guide to Replacing a WD18X21754 GE Dishwasher Passive Diverter Assembly Kit

Replacing the passive diverter assembly kit on your GE Dishwasher is an easy do-it-yourself project that can be completed in under an hour. With the right tools and know-how, you’ll be able to get your dishwasher working again in no time. Follow this guide to learn how to replace the passive diverter assembly on a WD18X21754 GE Dishwasher.

Tools Needed:

• Screwdriver
• Penetrating oil
• WD18X21754 GE Dishwasher Passive Diverter Assembly Replacement Kit

Instructions:
1. First, unplug the dishwasher before attempting any repairs.

2. Locate the diverter assembly on the inside of your dishwasher. It should look like a small metal box with three hoses connected to it.

3. Unscrew the screws that hold the diverter assembly in place using a screwdriver. You may have to use a bit of penetrating oil to get the screws loose if they are frozen.

4. Once the screws have been removed, carefully pull out the old diverter assembly.

5. Take the new assembly and place it into the dishwasher. Make sure that it is securely fastened in place.

6. Connect the hoses to the new diverter assembly and make sure they are secured tightly.

7. Replace the screws that were removed earlier and tighten them down with your screwdriver.

8. Plug the dishwasher back in and turn it on to make sure that the new diverter assembly is working properly.

After following these steps, your GE Dishwasher should be up and running again. Replacing the passive diverter assembly can be a quick and easy process when done correctly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search ADT521PGF4WS DDT575SMF7ES DDT575SSF7SS GDT580SGF7BB GDT580SGF6WW GDT580SMF6ES GDT580SSF6SS GDF510PGD6BB GDF510PMD6SA DDT575SSF6SS GDT580SGF7WW GDT580SMF7ES GDT580SSF7SS GDF510PSD6SS DDT575SGF7WW ADT521PGF6WS DDT575SGF4BB DDT575SGF4WW GDF510PGD4BB GDF510PGD6WW GDF570SGF7BB GDF570SGF7CC GDF570SGF7WW GDF570SSF7SS GDT580SGF4WW GDT580SGF6BB GDT680SSH4SS GDT680SSH7SS DDT575SGF5WW DDT575SSF4SS GDF510PGD4WW GDF510PMD4SA GDF510PSD4SS ADT521PGF4BS GDT580SGF4BB GDT580SMF4ES GDT580SSF4SS GDT580SGF5BB GDT580SGF5WW GDT580SMF5ES 1 2
