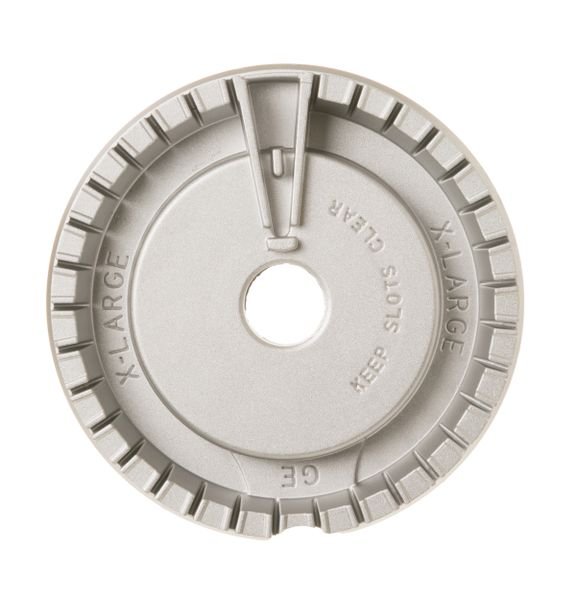

GE GAS RANGE XL SURFACE BURNER – WB16X24722

The WB16X24722 GE XL Burner, V2, is a high-performance replacement burner for your GE brand range. This durable burner features an XL size to fit larger pots and pans. It’s made of a one-piece, cast-iron construction for superior heat distribution and durability. The infinite heat control dial helps you reach from simmer to boil quickly and easily. This burner offers reliable performance with a long lifespan – perfect for busy kitchens! We’re your #1 source for genuine OEM appliance parts. Contact us for further questions as well as any other appliance parts needs! Step 1: Turn off the power. To safely replace the GE XL Burner, V2 WB16X24722, shut off the power to the appliance at the circuit breaker.

Step 2: Remove the old burner. Unscrew and remove the mounting screws that are holding the old burner and lift it out of the opening. Disconnect and remove the attached wires from the old burner.

Step 3: Install the new burner. Connect the wires to the new burner, then secure it with the mounting screws.

Step 4: Test the burner. Turn the power back on, and test the burner to ensure it is working properly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search PGP9036SL1SS JGP5036DL1BB JGP5036SL1SS PGP7030DL1WW PGP7030SL1SS PGP7036DL1WW PGP7036DL1BB C2S950P3M1D1 C2S950P4M1W2 P2B940SEJ1SS PGB911ZEJ1SS PGB930SEJ1SS JGB860DEJ1BB JGB860DEJ1WW PGB960SEJ1SS JGB660EEJ1ES JGB660SEJ1SS JGB700EEJ1ES PGB911DEJ1BB PGB911DEJ1WW PGB911EEJ1ES PGB911SEJ1SS PGB980ZEJ1SS PGB940SEJ1SS PGB940ZEJ1SS JGB645DEK1BB JGB645DEK1WW JGB645SEK1SS JGBS66DEK1BB JGBS66DEK1WW JGBS66EEK1ES JGBS66REK1SS P2B940SEJ2SS PGB930SEJ2SS PGB940SEJ2SS PGB940ZEJ2SS JGB860SEJ4SS PGB911DEJ3WW PGB911EEJ3ES PGB911ZEJ3SS 1 2 3 4 5
