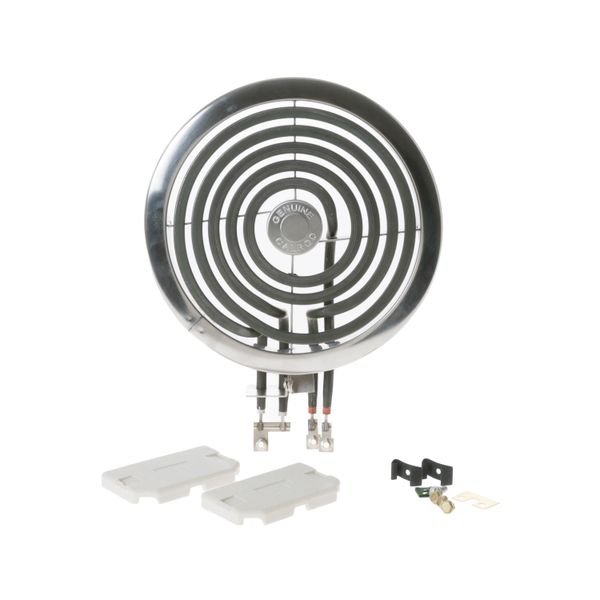

GE RANGE STOVE COOK TOP BURNER UNIT 3 WIRE 6 INCH – WB30X356

General Electric – Hotpoint Range Oven Cooktop 6 in. Burner Unit  WB30X356● 3 Wire● W/Chrome Trim● Includes ReceptacleWe are a Factory Authorized Parts Distributor for General Electric. Trust us for all of your General Electric appliance parts and accessories needs. 1. Unplug the stove from the power source.

2. Remove the grates and burner caps.

3. Loosen the screws on the cooktop to remove the oven top, being careful not to break the seal around it.

4. Take out the old Burner Unit by loosening the screws that hold it in place.

5. Pull the wires from the terminal block, remembering which wire goes where.

6. Install the new Burner Unit in reverse order of removal, making sure all connections are firmly secured.

7. Reconnect the wires to the terminal block, noting where each wire was connected.

8. Reinstall the oven top, making sure the seal is secure.

9. Tighten the screws on the cooktop to ensure the oven top is securely fastened.

10. Replace the grates and burner caps.

11. Plug the stove back into a power source.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. No more associated models for this part.
