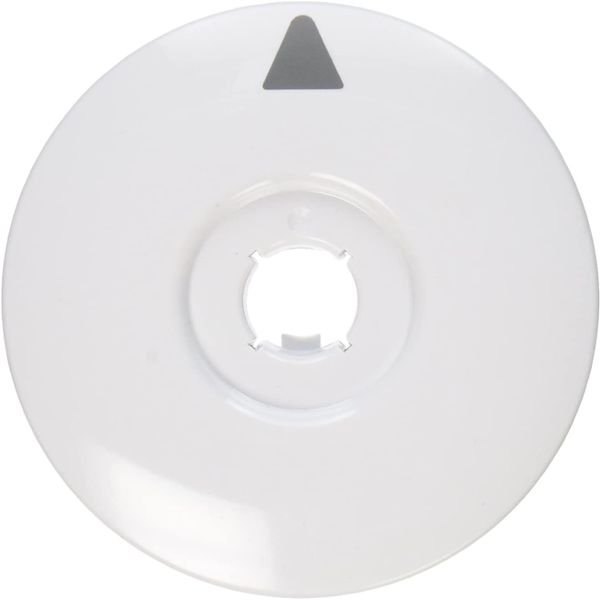

GE WASHER CONTROL TIMER DIAL – WH11X10033

GE General Electric Hotpoint RCA Sears Kenmore Washer Washing Machine Control Timer Dial WH11X10033We are a Factory Authorized Parts Distributor for General Electric Hotpoint. Trust us for all of your General Electric Hotpoint appliance parts and accessories needs. 1. Unplug the washing machine from the wall power outlet and turn off the water supply to the washer.

2. Remove the screws around the control panel of the washer then lift off the top panel of the washer.

3. Locate the old timer control dial, which is typically found near the top of the control panel.

4. Unscrew the two retaining screws on the side of the old timer control dial.

5. Disconnect the wiring harness from the back of the old timer control dial.

6. Take out the old timer control dial and replace it with a new WH11X10033 GE Washer Control Timer Dial.

7. Connect the wiring harness to the back of the new timer control dial.

8. Secure the new timer control dial in place with the retaining screws.

9. Replace the top panel of the washer and re-secure the screws.

10.Turn the water supply back on and plug the washing machine into the wall power outlet.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search GJSRP080B1WW GJXRP080B1WW S2100E1WW S2100E4WW S2100E6WW S2100E7WW S3700E0WW S3700E1WW S3700E4WW S3700E6WW VLXR1020A4WW WBB2090F0WW WBB2090F1WW WBB2090F2WW WBB2090F3WW WBSR3140D0WW WBSR3140D3WW WBSR3140D5WW WBSR3140DAWW WBSR3140DCWW WBXR2090B3WW WBXR2090B4WW WBXR2090D0WW WBXR2090D2WW WBXR2090D5WW WBXR2090DAWW WBXR3100B3WW WCSR2080B1WW WCSR2080B3WW WCSR2080B4WW WCSR2080B5WW WCSR2080B9WW WCSR2090D0WW WCSR2090D1WW WCSR2090D2WW WCSR2090D3WW WCSR2090D4WW WCSR2090D5WW WCSR2090D6WW WCSR2090D7WW 1 2 3 4
