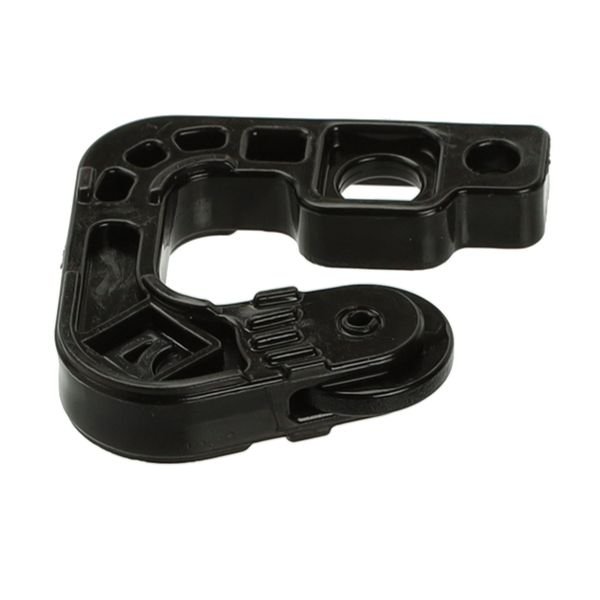

SAMSUNG REFRIGERATOR AUTO CLOSE LEVER ASSEMBLY – DA97-12625A

Auto Close Lever Assembly works with some models of Samsung Refrigerators Step 1: Unplug the Refrigerator from the Power Source

Unplug the refrigerator from the power source to ensure the safety of yourself and the appliance.

Step 2: Locate the Auto Close Lever Assembly

The Auto Close Lever Assembly can be found on the inside of the door.

Step 3: Remove the Old Auto Close Lever Assembly

Remove the two screws securing the lever assembly to the door. Unhook the wire press-fit retainer from the panel. Disconnect the wiring from the controller board. Gently pull the lever out of the door.

Step 4: Install the New Auto Close Lever Assembly

Place the new auto close lever into the door. Hook up the wiring to the controller board. Reinstall the wire press-fit retainer. Secure the lever to the door with the two screws.

Step 5: Test the Lever

Test the lever by opening and closing the door a few times, ensuring that it is working properly.

Step 6: Plug in the Refrigerator

Plug the refrigerator back into the power source.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search RF23HCEDBBC-AA-00 RF23HCEDBSR/AA-00 RF23HCEDBSR/AA-08 RF23HCEDBSR/AA-09 RF23HCEDBSR/AA-10 RF23HCEDBSR/AA-11 RF23HCEDBSR/AA-12 RF23HCEDBWW-AA-00 RF23HCEDBWW-AA-01 RF23HCEDBWW-AA-02 RF23HCEDBWW-AA-03 RF23HCEDBWW-AA-04 RF23HCEDBWW-AA-05 RF23HCEDTSR/AA-00 RF23HCEDTSR/AA-01 RF23HCEDTSR/AA-02 RF23HCEDTSR/AA-03 RF23HCEDTSR/AA-04 RF23HTEDBSR/AA-04 RF23HTEDBSR/AA-05 RF23HTEDBSR/AA-06 RF23HTEDBSR/AA-07 RF23HTEDBSR/AA-08 RF23HTEDBSR/AA-09 RF260BEAEBC-AA-01 RF260BEAESP-AA-01 RF260BEAEWW-AA-01 RF261BEAEBC-AA-01 RF263BEAEBC/AA-01 RF263BEAESP/AA-01 RF263BEAESR-AA-00 RF263BEAESR-AA-01 RF263BEAEWW-AA-02 RF263BEAEWW/AA-01 RF263TEAEBC-AA-01 RF263TEAEBC/AA-02 RF28HDEDBSR/AA-03 RF28HDEDBSR/AA-04 RF28HDEDBSR/AA-05 RF28HDEDBSR/AA-06 1 2 3 4
