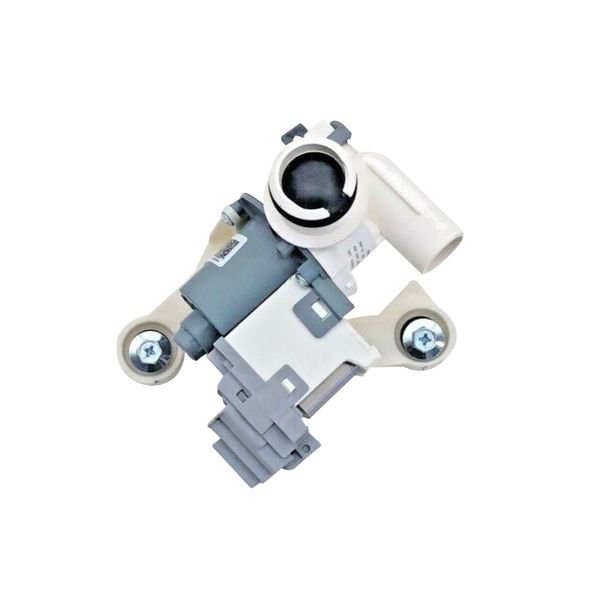

SAMSUNG WASHER DRAIN PUMP ASSEMBLY – DC97-19289F

Drain Pump Assembly works with some models of Samsung Washers 1. Start by unplugging the washer from the electrical outlet.

2. Lay a few towels or rags down on the floor and place the washer over them to ensure that no water spills.

3. Use a Phillips head screwdriver to remove the screws from the back panel of the washer. Then, carefully remove the panel.

4. Locate the DC97-19289F Samsung Washer Drain Pump Assembly near the bottom of the machine. Unplug the wiring harnesses connected to the pump and use the Phillips head screwdriver to remove the mounting screws.

5. Take the new replacement DC97-19289F Samsung Washer Drain Pump Assembly and attach it to the mounting plate with the screws. Plug in the wiring harnesses to the new pump.

6. Replace the back panel of the washer and secure with the screws.

7. Reconnect the washer to the electrical outlet.

8. Test the new pump and make sure it is working properly. Once satisfied, you have successfully replaced the DC97-19289F Samsung Washer Drain Pump Assembly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search WA45T3200AW/A4 WA54M8750AW/A4 WA54M8750AV/A4 WA52M8650AW/A4 WA52M8650AV/A4 WA52M7750AV/A4 WA50M7450AW/A4 WA50K8600AV/AA WA50K8600AV/A2 WA45T3400AW/A4 WA45T3400AV/A4 WA45T3400AP/A4 WA40J3000AW/AA-13 WA45N3050AW/A4 WA44A3405AW/A4 WA44A3405AV/A4 WA44A3405AP/A4 WA44A3205AW/A4 WA41A3000AW/A4 WA40A3005AW/A4 WA45N3050AW/A4-00 WA45M7050AW-A4-04
