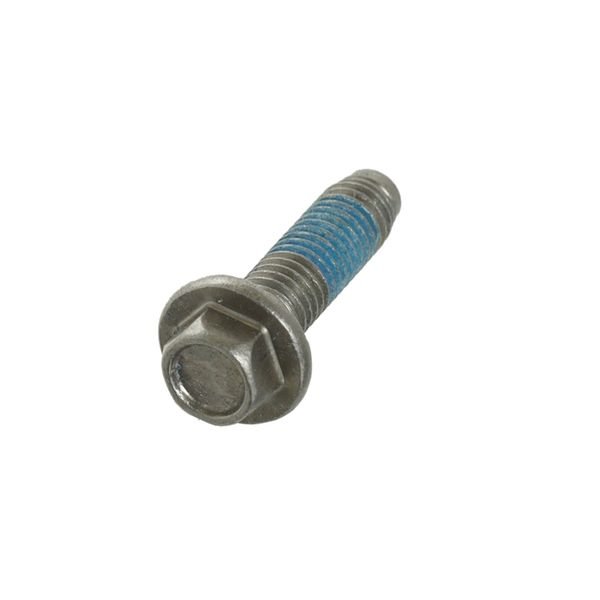

SAMSUNG WASHER SPIDER HEX BOLT – DC60-40137A

Hex bolt for some models of Samsung washing machines. Step 1 – Unplug the Washer
Before you begin any repair work, remember to unplug the Samsung washer from the power outlet.

Step 2 – Open the Washer Cabinet
Your Samsung washer is held together by a few screws located underneath the top panel. Unscrew all of them and open up the washer cabinet.

Step 3 – Locate the Spider Hex Bolt
The Spider Hex Bolt is located in the center of the agitator. This bolt helps secure the agitator to the main shaft.

Step 4 – Remove the Spider Hex Bolt
Using a small screwdriver, carefully remove the Spider Hex Bolt from the agitator.

Step 5 – Install the New Spider Hex Bolt
Take the new DC60-40137A Spider Hex Bolt and insert it into the agitator. Make sure that it is securely tightened into place.

Step 6 – Close the Washer Cabinet
Once you have secured the new Spider Hex Bolt, close the washer cabinet and screw the screws back in place.

Step 7 – Plug the Washer Back In
After everything is reassembled, plug the washer back into the power outlet and you are done!

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search WF50R8500AV/US WF45T6000AV/A5 WF45T6000AW/A5 WF45T6200AW/US WF46BB6700ADUS WF46BB6700AVUS WF50A8600AE/US WF50A8600AV/US WF50A8800AV/US WF50BG8300AEUS WF50BG8300AVUS WF45T6000AP/US WF50R8500AW/US WF53BB8700ATUS WF53BB8700AVUS WF53BB8900ADUS WF53BB8900ATUS WW10K6410QX/EY WW10T554DAN/EY WW10T554DAW/EY WW60J3287LW/GG WF45B6300AP/US WF407ANW/XAA-00 WF410ANR-XAA WW22K6800AW-A2-00 WD10K6410OX/EY WD10T554DBN/EY WF45A6400AC/US WF45A6400AW/US WF45B6300AC/US WF45B6300AD/US WF316BAC-XAA WF45B6300AV/US WF45B6300AW/US WF45R6100AC/US WF45R6100AV/US WF45R6100AW/US WF45R6300AC/US WF45R6300AP/US WF45R6300AV/US 1 2
