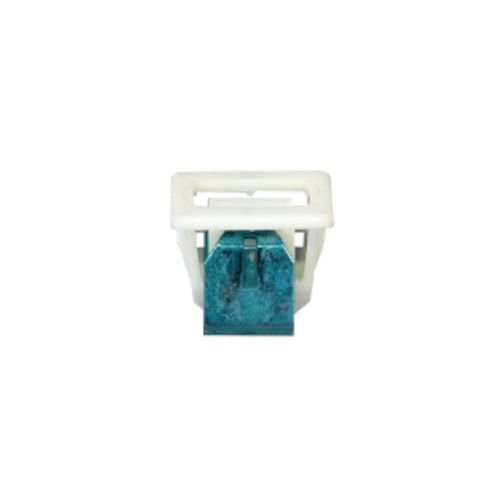

SPEED QUEEN DRYER DOOR CATCH ASSEMBLY – D510177

Door catch assembly works with some Speed Queen, and Amana models of clothes dryers. DIY Guide – How to Replace the D510177 Speed Queen Dryer Door Catch Assembly

Replacing the door catch assembly on a Speed Queen dryer is not a difficult task, and the process is relatively simple. The following step-by-step instructions are designed to help you do it yourself.

Step 1: Unplug the Dryer

Unplug the dryer from the wall outlet before beginning any work to ensure safety.

Step 2: Access the Old Catch Assembly

Remove the screws at the top and bottom of the door opening to remove the interior door panel. Lift the door out of the way and disconnect the door switch wires. Now you should be able to access the front side of the catch assembly.

Step 3: Remove the Old Catch Assembly

Remove the mounting screws that secure the catch assembly to the dryer door frame. Slide the catch toward the inside of the dryer to remove it from the door frame.

Step 4: Install the New Catch Assembly

Slide the new catch assembly into position in the dryer door frame, making sure it is flush against the door frame. Secure the catch assembly with the mounting screws.

Step 5: Reconnect the Wires

Connect the wires from the door switch to the new catch assembly.

Step 6: Reinstall the Door

Secure the door panel back onto the dryer door frame with the screws that were removed in the first step.

Step 7: Plug in the Dryer

Once everything is connected and properly secured, plug the dryer back into the wall outlet.

Congratulations! You have successfully replaced the D510177 Speed Queen dryer door catch assembly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. SearchThe following parts are replaced by this product 54660 510177 514113 Search ADE30RGS171TW01 ADE32FSS431AN01 ADE32FSS431NN22 ADE32FSS541RN01 ADE3LRGS171TW01 ADE3SRGS173CW01 ADE3SRGS173TW01 ADE3SRGS175CW01 ADE3SRGS175CW14 ADE3SRGS175TW01 ADE3TFWS431AW01 ADE3TRGS451LW22 ADE3TRWS431AW01 ADE3TRWS431NW22 ADE3TRWS431NW29 ADE3TRWS461AW01 ADE41FSS171TN01 ADE41FSS171TN03 ADE4BFGS171TW01 ADE4BRGS171TW01 ADE4BRGS171TWAH ADE4BRGS175CW01 ADE4BRGS175CW14 ADE4BRGS175TW01 ADEE8RGS173CW01 ADEE8RGS173TW01 ADEE9BGS173CW01 ADEE9BGS173TW01 ADEE9BGS175CW01 ADEE9BGS175CW14 ADEE9BGS175TW01 ADEE9BSS173CN01 ADEE9BSS173TN01 ADEE9BSS175CN01 ADEE9BSS175CN14 ADEE9BSS175TN01 ADEE9RGS173CW01 ADEE9RGS173TW01 ADEE9RGS175CW01 ADEE9RGS175CW14 1 2 3 4 5
