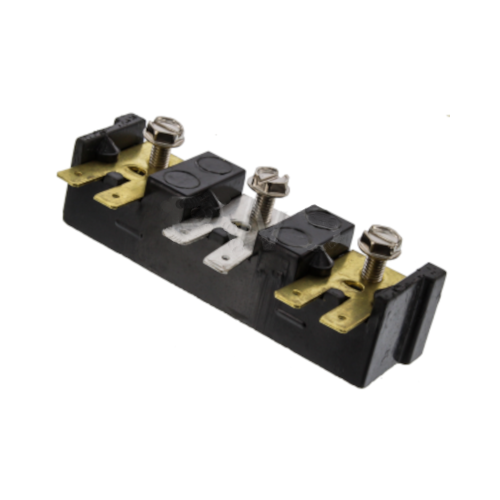

SPEED QUEEN DRYER TERMINAL BLOCK ASSEMBLY W/SCREWS – D510190P

Terminal block w/screws assembly works with some Speed Queen, and Amana models of clothes dryers. How To Replace the D510190P Speed Queen Dryer Terminal Block W/Screws Assembly

1. Unplug the power cord from the wall outlet before attempting to work on the dryer.

2. Remove the screws that attach the terminal block to the dryer cabinet with a screwdriver.

3. Disconnect the wires from the terminal block by pressing down on the wire clamps and pulling off each wire one-by-one.

4. Carefully pull out the old terminal block and set aside.

5. Install the new terminal block in the same way as the old one was removed – making sure each wire is securely fastened and not pinched.

6. Secure the new terminal block with the screws or bolts that were removed in step 2.

7. Reconnect the power cord to the wall outlet.

8. Test the dryer to make sure everything is working properly.

Congratulations, you have successfully replaced the D510190P Speed Queen Dryer Terminal Block W/Screws Assembly!

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. SearchThe following parts are replaced by this product 61923P 510190P 61923P Search ADE30RGS171TW01 ADE32FSS431AN01 ADE32FSS431NN22 ADE32FSS541RN01 ADE3LRGS171TW01 ADE3SRGS173CW01 ADE3SRGS173TW01 ADE3SRGS175CW01 ADE3SRGS175CW14 ADE3SRGS175TW01 ADE3TFWS431AW01 ADE3TRGS451LW22 ADE3TRWS431AW01 ADE3TRWS431NW22 ADE3TRWS431NW29 ADE3TRWS461AW01 ADE41FSS171TN01 ADE41FSS171TN03 ADE4BFGS171TW01 ADE4BRGS171TW01 ADE4BRGS171TWAH ADE4BRGS175CW01 ADE4BRGS175CW14 ADE4BRGS175TW01 ADEE8RGS173CW01 ADEE8RGS173TW01 ADEE9BGS173CW01 ADEE9BGS173TW01 ADEE9BGS175CW01 ADEE9BGS175CW14 ADEE9BGS175TW01 ADEE9BSS173CN01 ADEE9BSS173TN01 ADEE9BSS175CN01 ADEE9BSS175CN14 ADEE9BSS175TN01 ADEE9RGS173CW01 ADEE9RGS173TW01 ADEE9RGS175CW01 ADEE9RGS175CW14 1 2 3 4 5
