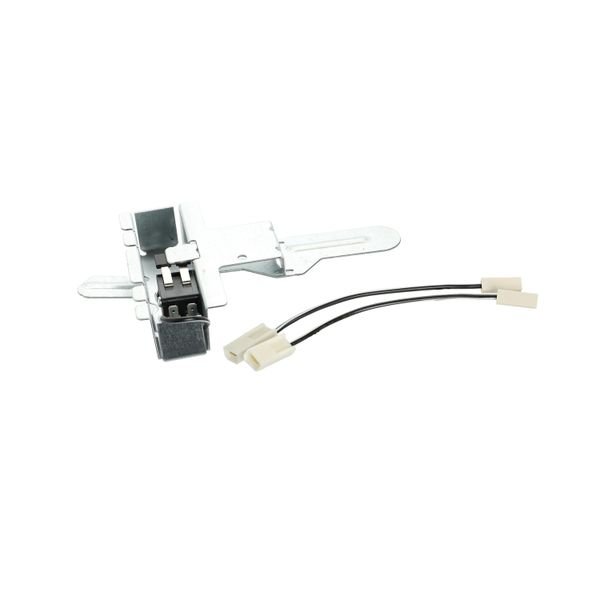

SPEED QUEEN KIT, DUAL LID SWITCH – 204696

The Speed Queen 204696 KIT, DUAL LID SWITCH ensures your safety and reliability when using your washing machine. With dual lid switches, you can avoid the danger of a loaded washer starting while the lid is still open. This kit features a pair of double throw switches which make sure the machine isn’t started until the lid is fully closed. They feature a strong spring-loaded construction and the terminals are hermetically sealed for thermal protection. This kit is designed to fit Speed Queen models AE7500 E2, AE8000 E2, TW5000 E2, TW5500 E2, TW7250 E2, TW7300 E2, TW7500 E2, TW8000 E2, and SW8000 E2. Make sure your washing machine operates safely with the Speed Queen 204696 KIT, DUAL LID SWITCH. We’re your #1 source for genuine OEM appliance parts. Contact us for further questions as well as any other appliance parts needs! Step 1: Shut off all power to the washing machine. Unplug the washer from the wall outlet.

Step 2: Locate the two wires, one black and one white, connected to the dual lid switch assembly. The wires are usually found at the bottom right hand corner of the washer cabinet.

Step 3: Disconnect the two wires from the dual lid switch assembly by squeezing the latch on either side of the connector and sliding it out of the assembly. Be sure to note the color of each wire for re-connection later.

Step 4: Pull the switch assembly from the front of the washer and remove the mounting screws from the back of the switch.

Step 5: Install the new Speed Queen 204696 KIT Dual Lid Switch by aligning the mounting holes with those on the rear of the washer cabinet. Secure the switch in place with the mounting screws.

Step 6: Reconnect the two wires to the new dual lid switch assembly. Make sure that the black wire connects to the terminal marked “B” and the white wire connects to the terminal marked “W”.

Step 7: Plug the washer into the wall outlet and turn the power back on. Test the washer to make sure that the new switch is working properly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. SearchThe following parts are replaced by this product 37631 204979 Search AWN311SP111TW01 AWN312SP303LW22 AWN402PP111TW01 AWN412SP111TW01 AWN432SP111TW01 AWN432SP113CW04 AWN432SP113FW28 AWN432SP113TW01 AWN432SP113TW04 AWN43RSN115CW01 AWN43RSN115CW14 AWN43RSN115TW01 AWN542SP111TW01 AWN542SP111TWAH AWN552SN301AW01 AWN552SN301NW22 AWN552SN301NW29 AWN63RSN115CW01 AWN63RSN115CW14 AWN63RSN115TW01 AWNA11SP111TW01 AWNA62SN301AW01 AWNA62SN303AW01 AWNE82SN303AW01 AWNE82SP113CW01 AWNE82SP113FW01 AWNE82SP113TW01 AWNE92SN303AW01 AWNE92SP113FW01 AWNE92SP113TW01 AWNE92SP123DW01 AWNE92SP303NW29 AWNE92SP303NW36 AWNE92SP303XW01 AWNE92SP303XW26 AWNE92SP303XW34 AWNE92SP543DW01 AWNE9RSN115CW01 AWNE9RSN115CW14 AWNE9RSN115TW01 1 2 3 4 5
