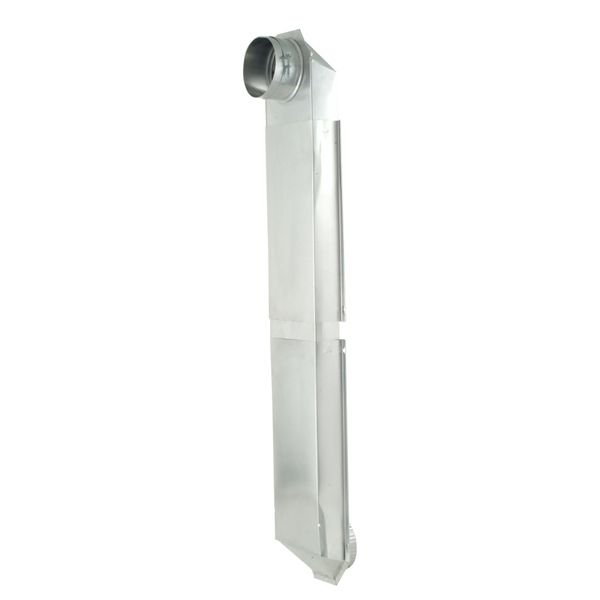

WHIRLPOOL 29/52 PERISCOPE VENTING – 4396014

The Whirlpool 4396014 Whilrpool Periscope Venting Kit makes dryer installation a breeze! This all-inclusive kit contains everything you need to get your clothes dryer up and running quickly and easily. The included periscope vent allows for the dryer to sit close to the wall, giving you back more space in your laundry room. It also features a flex connector that fits any standard 4-inch dryer vent opening and can be cut down to just 2-1/2 inches for a snug fit. It’s constructed with durable materials and coated with rust-proof paint for longevity and corrosion resistance. Plus, the patented quick-connectors make installation a simple one-person job. Get your dryer up and running with the dependable Whirlpool 4396014 Whilrpool Periscope Venting Kit. We’re your #1 source for genuine OEM appliance parts. Contact us for further questions as well as any other appliance parts needs! Step 1: Unplug the power cord to the appliance and turn off the water supply before attempting the repair.

Step 2: Carefully remove the cover of the existing vent and disconnect any wires or vents that are connected to it.

Step 3: Pull the old vent out of the wall and discard it in an appropriate manner.

Step 4: Take the Whirlpool 4396014 Whirlpool Periscope Venting kit out of its packaging, and verify that all components are included.

Step 5: Slide the aluminum foil exhaust tubes through the wall and into the back of the dryer.

Step 6: Secure both the aluminum foil tubes and the vertical adjuster tube with metal clips provided in the vent kit.

Step 7: Reattach the power cord and turn on the water supply.

Step 8: Connect the vent hood and louvers to the panel.

Step 9: Put the cover back on the vent.

Step 10: Test the setup to make sure it is working properly.

Following these steps will help ensure your Whirlpool 4396014 Whirlpool Periscope Venting is replaced correctly and working properly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. Search WED5100HC0 WED5100HW0 WED6120HC0 WED6120HW0 WGD5100HC0 WGD5100HW0 YWED5100HC0 YWED5100HW0 YWED6120HC0 YWED6120HW0 WED7120HC0 WED7120HW0 WED8120HC0 WED8120HW0 WGD7120HC0 WGD7120HW0 WGD8120HC0 WGD8120HW0 YWED7120HC0 WED5100HC1 WED5100HW1 WED6120HC1 WED6120HW1 YWED6120HC1 YWED6120HW1 YWED7120HC1 YWED5100HC1 YWED5100HW1 WGD8127LW0 WED8127LW0 WGD8127LC0 WED8127LC0 WGD7120HC1 WGD7120HW1 WED7120HW1 WED7120HC1 MGD7230HC1 WED5100HW2 MGD7230HW1 WED8127LW1 1 2 3
