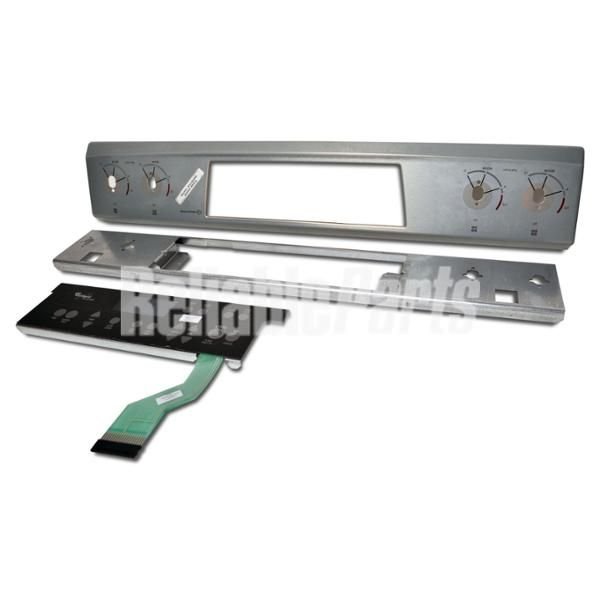

WHIRLPOOL CONTROL PANEL ASSEMBLY – W10122295

Whirlpool KitchenAid Maytag Sears Kenmore Roper Range Oven CONTROL PANEL and TOUCH PAD MEMBRANE SWITCH ASSY W10122295We are a Factory Authorized Parts Distributor for Whirlpool Maytag. Trust us for all of your Whirlpool Maytag appliance parts and accessories needs. DIY: How to Replace a W10122295 Whirlpool Range Oven Control Panel and Touch Pad Membrane Switch Assembly

Replacing the control panel and touch pad membrane switch assembly in your Whirlpool range oven can be a daunting task, but with the right tools and detailed instructions, it is possible to make the switch on your own. Here is a simple step-by-step guide to help make the process easier.

Step 1 – Gather the tools needed for the job.

You will need an appropriate size Philips head screwdriver, needle nose pliers, a flat head screwdriver, and a nut driver.

Step 2 – Disconnect the power.

Before beginning any electrical repairs, it is important to disconnect the power to the appliance by unplugging it or turning off the circuit breaker at the main service panel.

Step 3 – Remove the existing control panel.

Using the Phillips head screwdriver, remove the screws that hold the existing control panel in place. Once the screws are removed, carefully lift the panel away from the oven and set aside.

Step 4 – Pull out the existing touch pad membrane switch assembly.

Use the flathead screwdriver to gently pry up the existing touch pad membrane switch assembly. Pull the switch out of the oven and discard it.

Step 5 – Install the new touch pad membrane switch assembly.

Connect the new touch pad membrane switch assembly to the wires inside the oven and then carefully insert it into the opening. Secure the switch with the screws that were removed in step three.

Step 6 – Install the new control panel.

Position the new control panel in place and secure it with the screws removed in step three. Plug in the appliance or turn on the circuit breaker and test the new control panel and touch pad membrane switch assembly. If all is working correctly, you have successfully replaced the W10122295 Whirlpool range oven control panel and touch pad membrane switch assembly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer’s manual, if available. No more associated models for this part.
